TECA080B3-20W08-63 KS15F

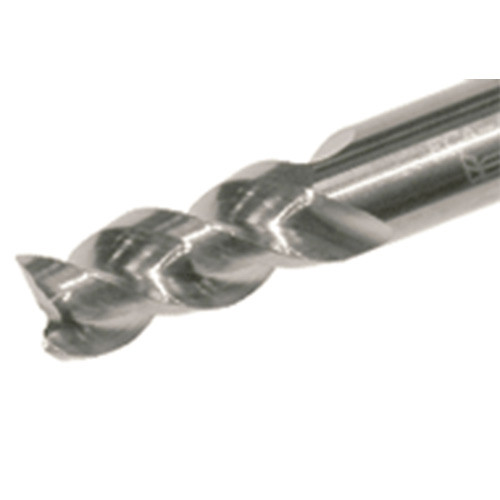

3 flute endmill, 45 deg helix angle, for aluminium machining

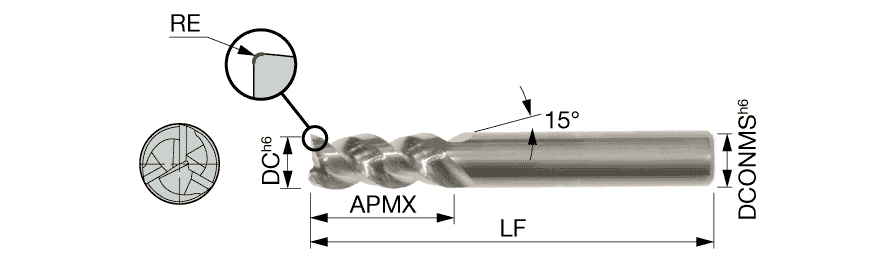

| Cutting Diameter (DC) | 8 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 20 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Grade | KS15F |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Shank Type | Weldon | Unit | M |
Product Features
| Family Description | 3 flute endmill, 45 deg helix angle, for aluminium machining | FamilyName | TECA-B3 |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TECA-B3
BrandName
Tungaloy
