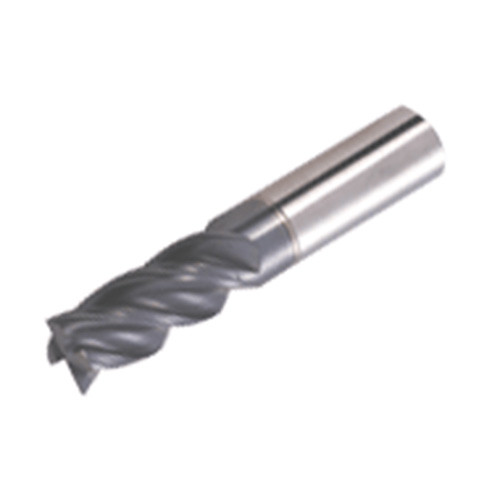

TEC040E4L-10/14C06CF-57 AH725
4 flute endmill, 38 deg helix angle, variable pitch

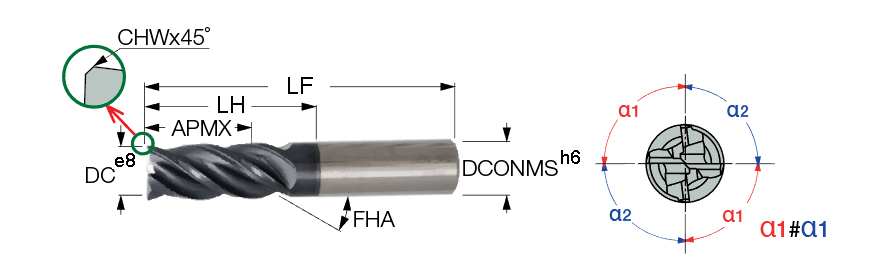

| Cutting Diameter (DC) | 4 mm | Corner Chamfer Width (CHW) | 0.15 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | AH725 |
| Depth of Cut Maximum (APMX) | 10 mm | Head Length (LH) | 14 mm |
| Overall Length (OAL) | 57 mm | Neck Length (LN) | 14 mm |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.04 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.015 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Shoulder Milling | |
Product Features
| Family Description | 4 flute endmill, 38 deg helix angle, variable pitch | FamilyName | TEC-E4L-CF |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0230
Name
Square & Corner Radius End Mills
FamilyName
TEC-E4L-CF
BrandName
Tungaloy
