MTECS03015C672UN AH725

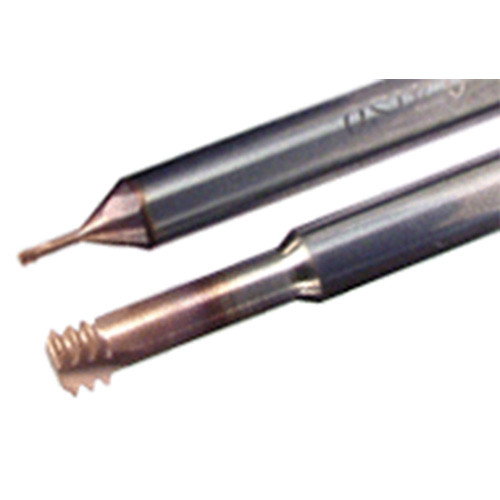

Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread.

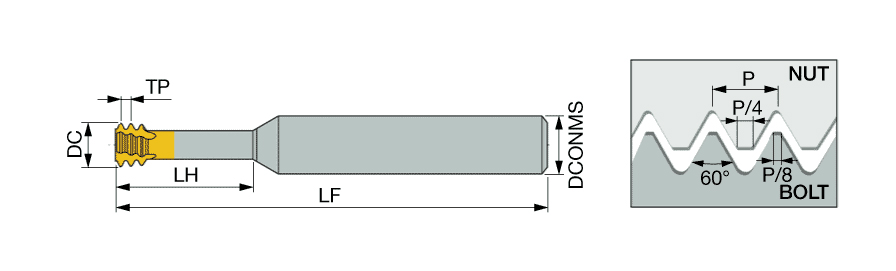

| Connection Diameter Machine Side (DCONMS) | 3 mm | Threads per Inch Maximum (TPIX) | 72 |
| Cutting Diameter (DC) | 1.45 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 72 |
Product Features
| Family Description | Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | COO | ISRAEL |
Shipping Info
Weight per item
0.0000
