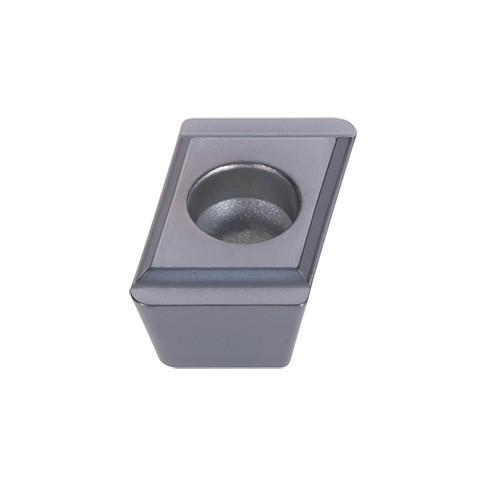

FBM070404R-G-I AH9130
Intermediate inserts for drill with G chipbreaker

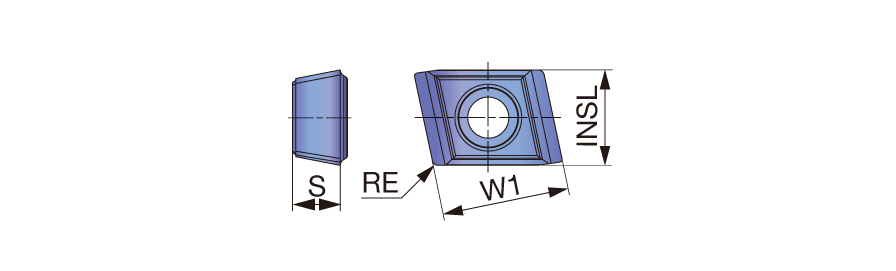

| Cutting Edge Length (L) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 4 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 6.5 mm | Measurement Type | Metric |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH9130 | Unit | M |
| Application | | BTA system | General Drilling | Gundrill | |
Product Features
| Family Description | Intermediate inserts for drill with G chipbreaker | COO | JAPAN |
Shipping Info
Weight per item
0.0400
Related Documentation
For cross hole drilling, please use the DL type chipbreaker because the feed needs to be reduced.
