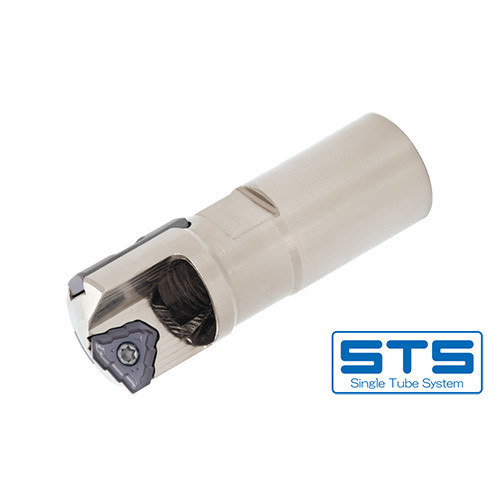

FNTR-14N-1-XX.XXA
Indexable head with internal single-start thread for single tube system (STS)

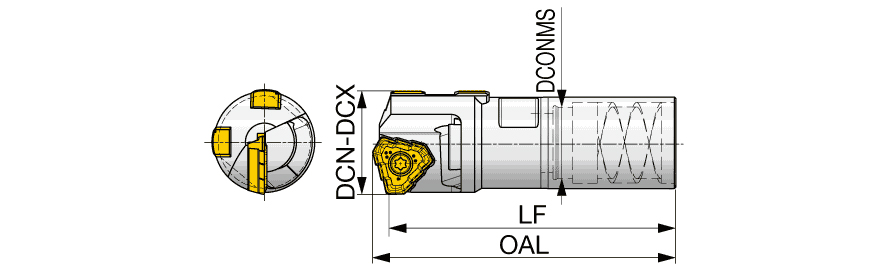

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 17.25 mm |
| Connection Diameter Machine Side (DCONMS) | 13.4 mm | Measurement Type | Metric |
| Functional Length (LF) | 54 mm | Body Material | Steel |
| Overall Length (OAL) | 56.2 mm | Unit | M |
| Cutting Diameter Minimum (DCN) | 16.51 mm |
Product Features
| Family Description | Indexable head with internal single-start thread for single tube system (STS) | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
