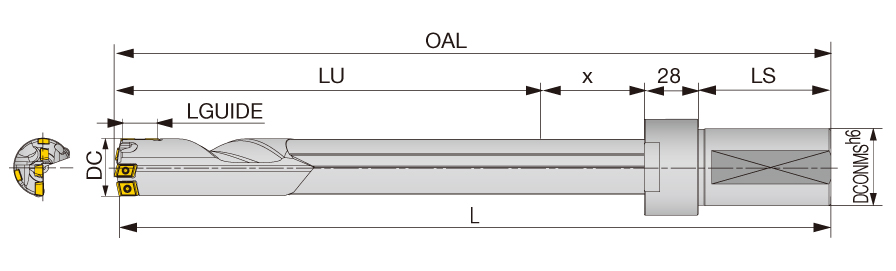

| Cutting Diameter (DC) | 30 mm | Cutting Diameter Minimum (DCN) | 30 mm |
| Usable Length (LU) | 1510.9 mm | Cutting Diameter Maximum (DCX) | 30 mm |
| Application | | Gundrill | | Point Length (PL) | 2.9 mm |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | FBM070408L-G-C |
| Shank Length (LS) | 69 mm | Body Material | Steel |
| Functional Length (LF) | 1581 mm | Unit | M |
| Overall Length (OAL) | 1652.9 mm |
Product Features

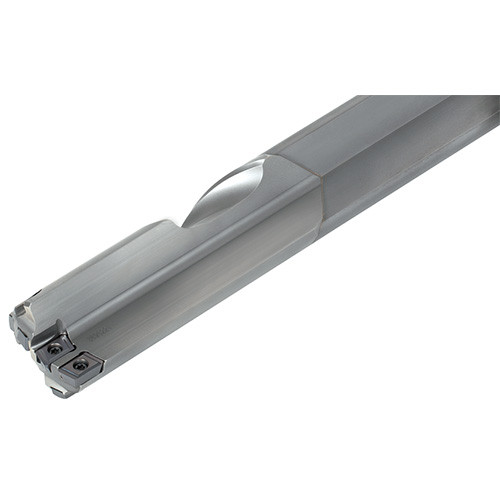

| Family Description | Drill body for gun drill machine | COO | JAPAN |

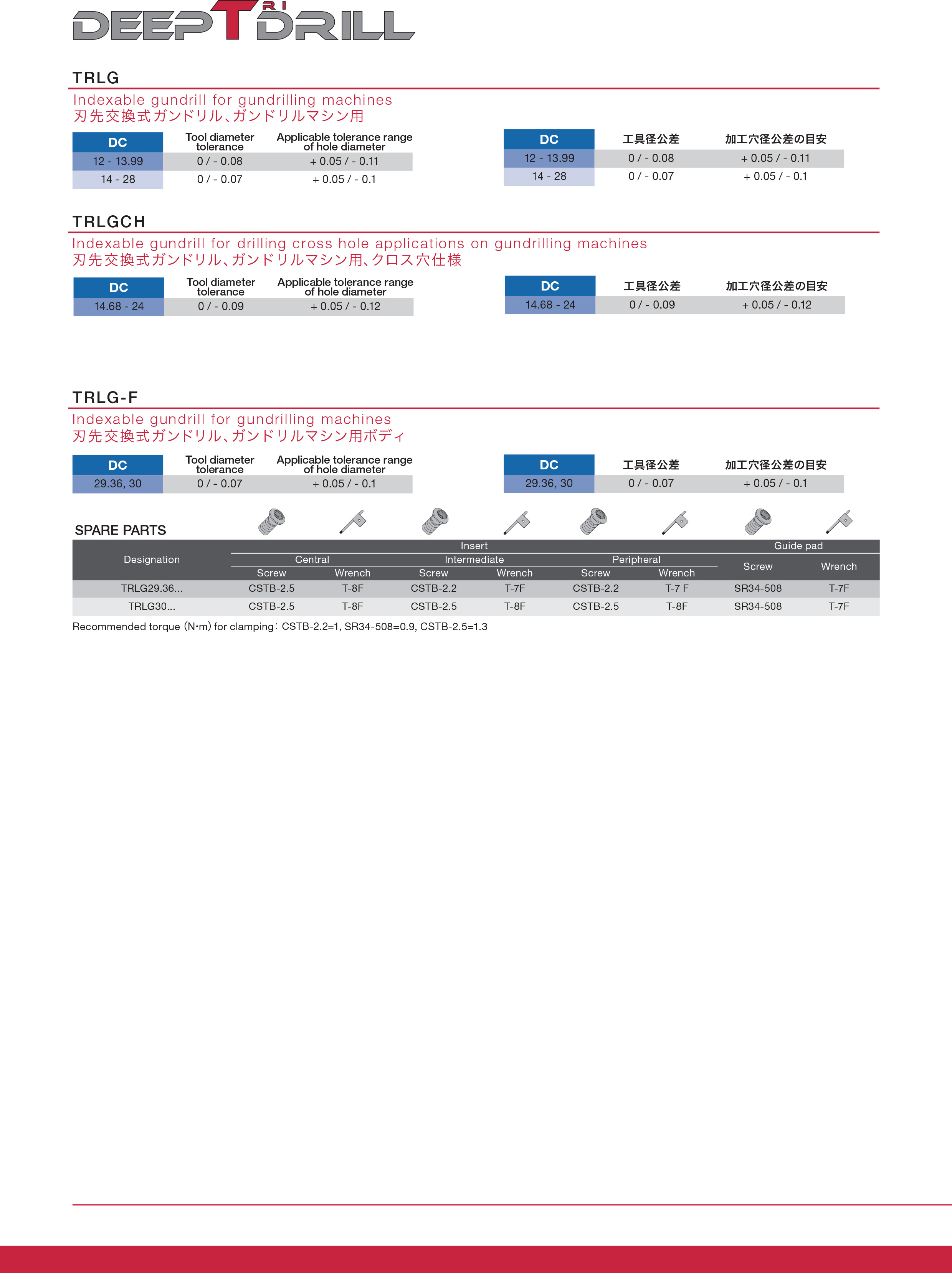

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". Max. DC = 40: Available tailor made tools The drill body surface is blackened for corrosion resistance and may appear uneven. This, however, will not affect the performance of the drill. For spare parts, click on "More Info". |
Shipping Info
Weight per item
0.0000
