3QP-TCGW110204 BXA20

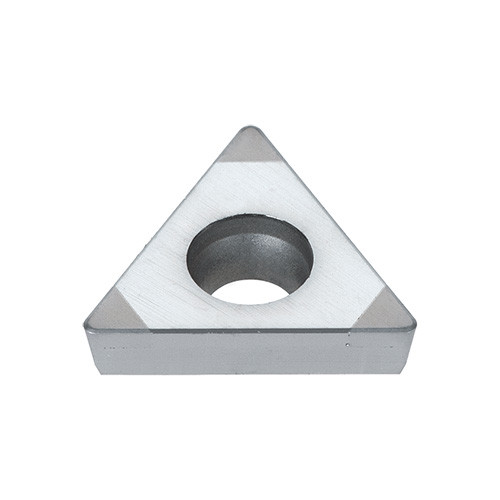

Positive 7 deg relief ang., G class, triangular CBN insert
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |

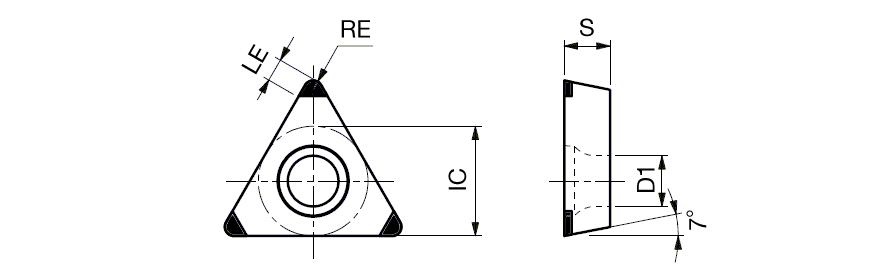

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | BXA20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 2.2 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Positive 7 deg relief ang., G class, triangular CBN insert | FamilyName | 3QP-TCGW |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0110
Name
Turning Indexable Inserts
FamilyName
3QP-TCGW
BrandName
Tungaloy
