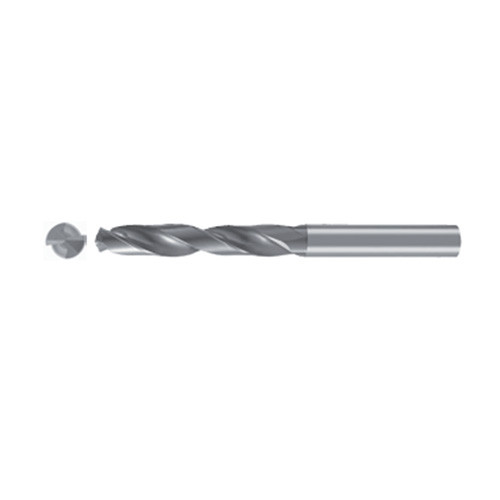

DSE1500F03 AH180
GigaPowerDrill series without coolant hole, L/D=3

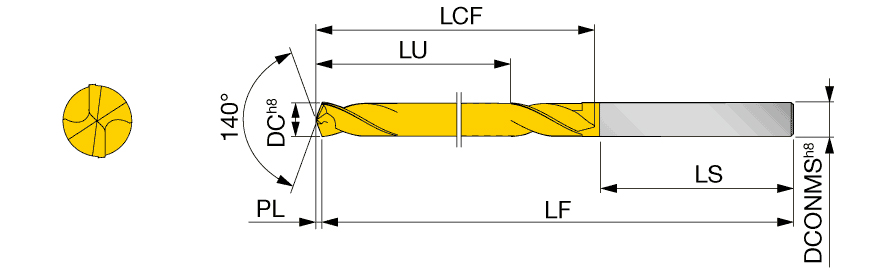

| Drill Bit Size / Cutting Diameter (DC) | 15 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH180 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Usable Length (LU) | 47.7 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 91 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 153 mm |
| Point Length (PL) | 2.73 mm | Body Material | Carbide |
| Shank Length (LS) | 62 mm | Unit | M |
Product Features
| Family Description | GigaPowerDrill series without coolant hole, L/D=3 | COO | JAPAN |
Shipping Info
Weight per item
0.2870
