50S3545L

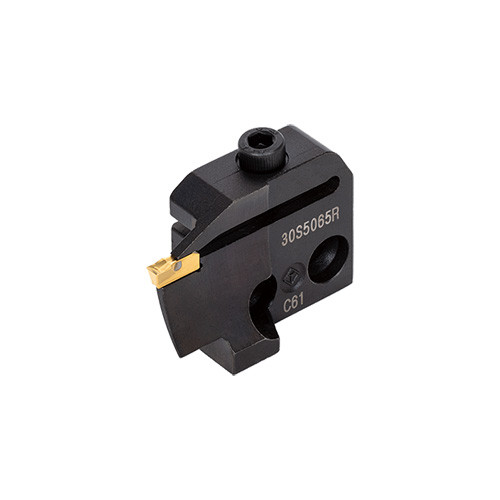

Blades of My-T toolholders CGWSR/L-#S/D & CGWTR/L-#S/D for face grooving & turning

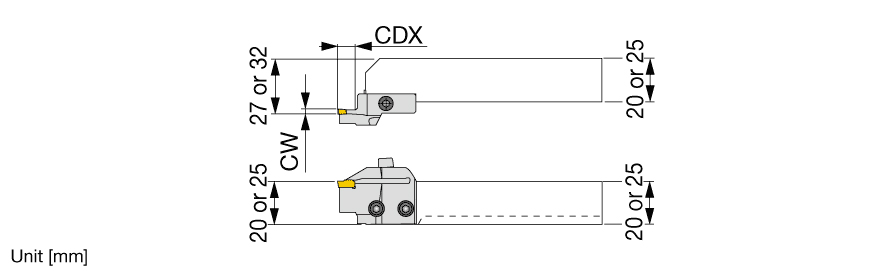

| Shank Width (B) | 25 mm | Minimum Bore Diameter (DMIN) | 35 mm |
| Shank Height (H) | 25 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 5 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 32 mm |
| Overall Length (OAL) | 152.5 mm | Measurement Type | Metric |
| Work Piece Parting Diameter Maximum (CUTDIA) | 45 mm | Unit | M |
| Application | | Face grooving | |
Product Features
| Family Description | Blades of My-T toolholders CGWSR/L-#S/D & CGWTR/L-#S/D for face grooving & turning | FamilyName | #S/D##R/L |
| Remarks | There are 2 shank type of CGWSR/L and CGWTR/L. CGWSR/L Shank : The right hand blade set(...R) is used with right hand shank(CGWSR...) and the left hand blade set(...L) is used with left hand shank(CGWSL...). CGWTR/L Shank : The left hand blade set(...L)is used with right hand shank(CGWTR...) and the right hand blade set(...R)is used with left hand shank(CGWTL...). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1110
Name
Face Groove/Turn Indexable Holders
FamilyName
#S/D##R/L
BrandName
Tungaloy
