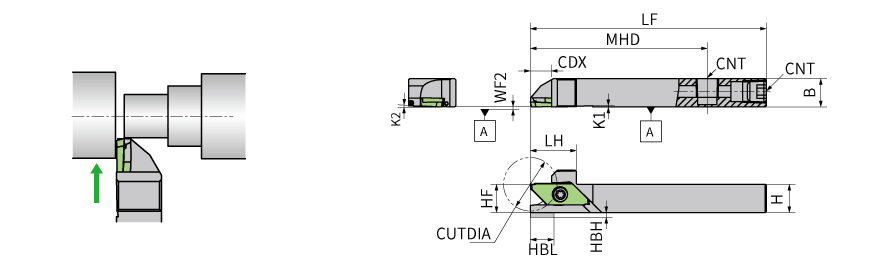

| Cutting Depth Maximum (CDX) | 9 mm | Application | | Parting | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Head Bottom Offset Height (HBH) | 2 mm |
| Head Length (LH) | 19.5 mm | Coolant Entry Thread Size (CNT) | Rc1/8 |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | CTPA type toolholder / Coolant through |
Shipping Info
Weight per item
0.1130
Name

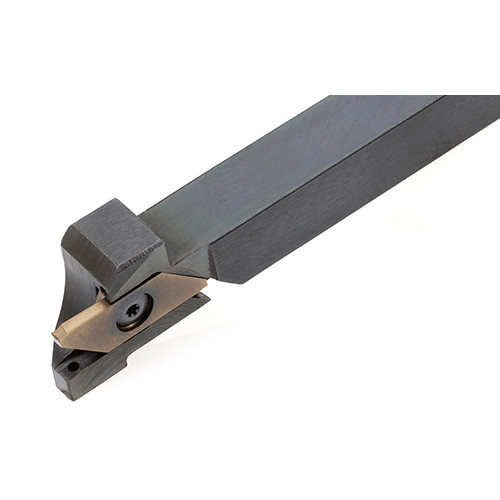

Groove/Turn Indexable Holders
FamilyName
CTPA type toolholder / Coolant through
BrandName
NTK Cutting Tools
