| Shank Size (SS) | ST10 | Application | | Straight shape | |
| Connection Size (CSI) | TJS collet | Measurement Type | Metric |

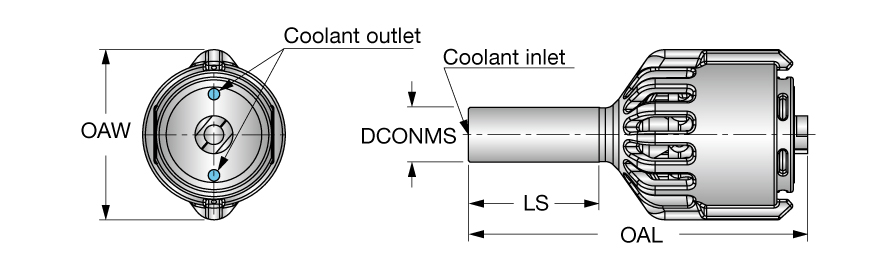

| Connection Diameter Machine Side (DCONMS) | 10 mm | Connection Diameter Workpiece Side (DCONWS) | 3 mm |
| Shank Length (LS) | 23.8 mm | Body Material | Steel |
| Functional Length (LF) | 35.6 mm | Unit | M |
Product Features

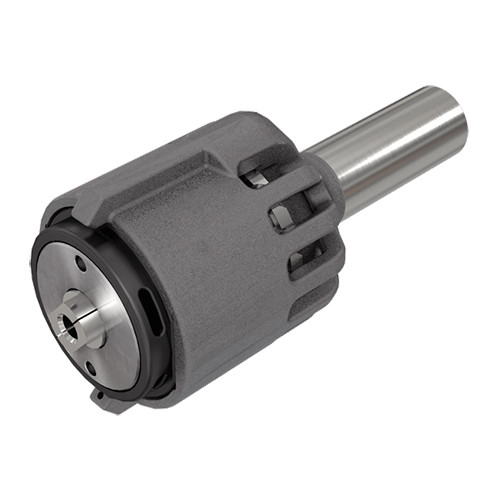

| Family Description | High-pressure coolant driven HSM spindle with a straight shank, for small diameter cutting tools. | FamilyName | TJS M00 |
| Remarks | Coolant pressure: 1.5 4 MPa Flow rate: 10 20 l/min Tool diameter (DC) of Drilling: 0.1 2 mm Tool diameter (DC) of Milling: 0.3 3 mm Max. tool shank diameter: 3.175 mm Number of revolutions: 18,000 40,000 min 1 (These are approximate number of revolutions depending on coolant pressure, flow rate, and type.) | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
TJS M00
BrandName
Tungaloy
